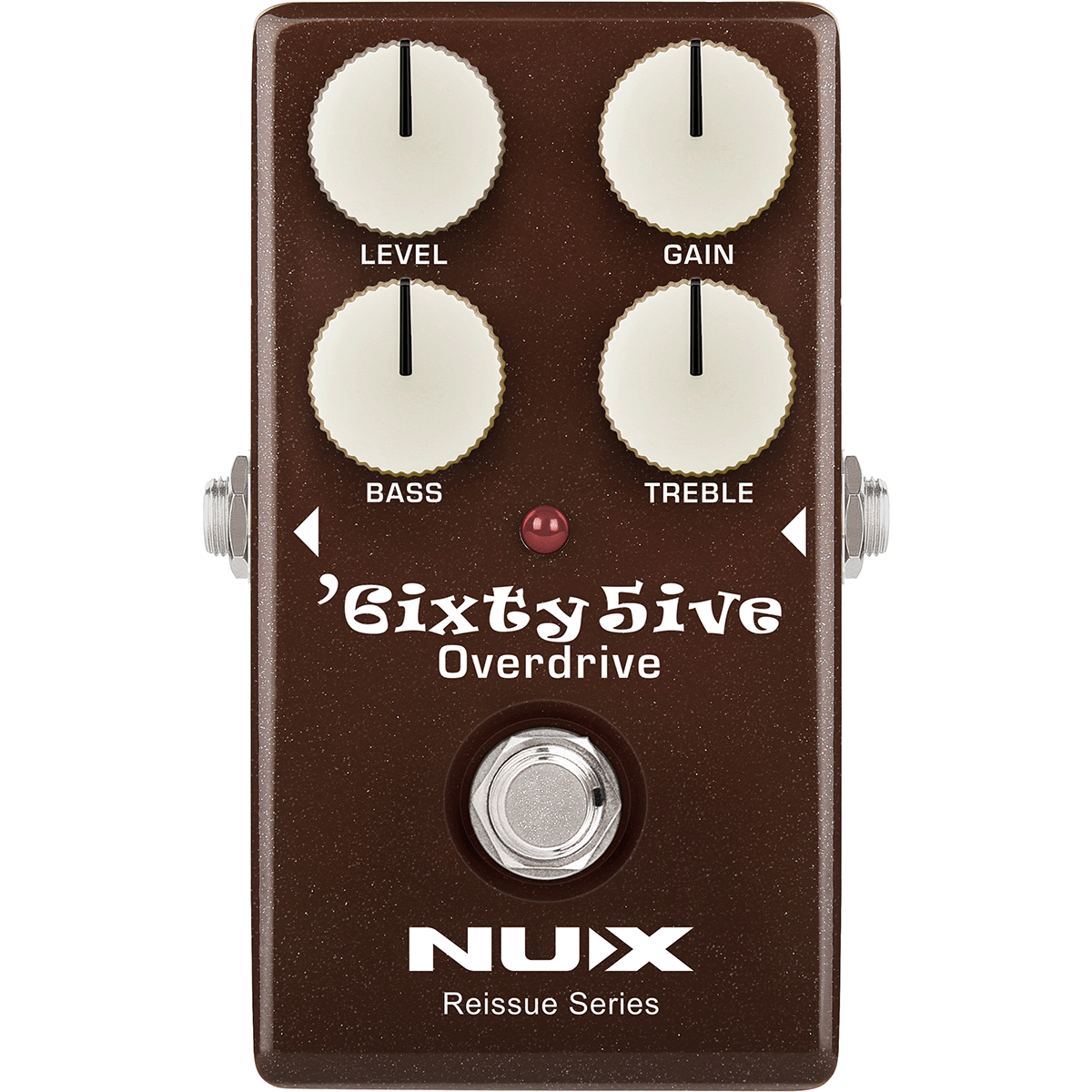

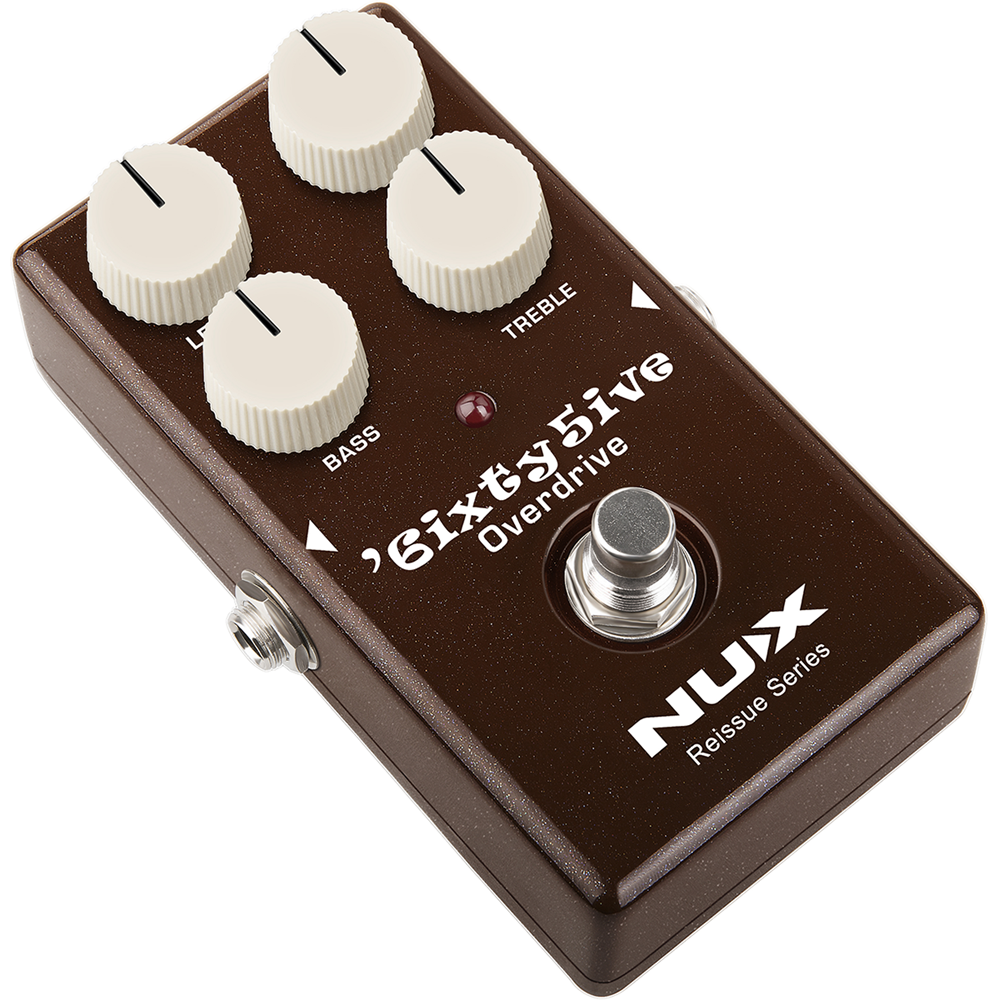

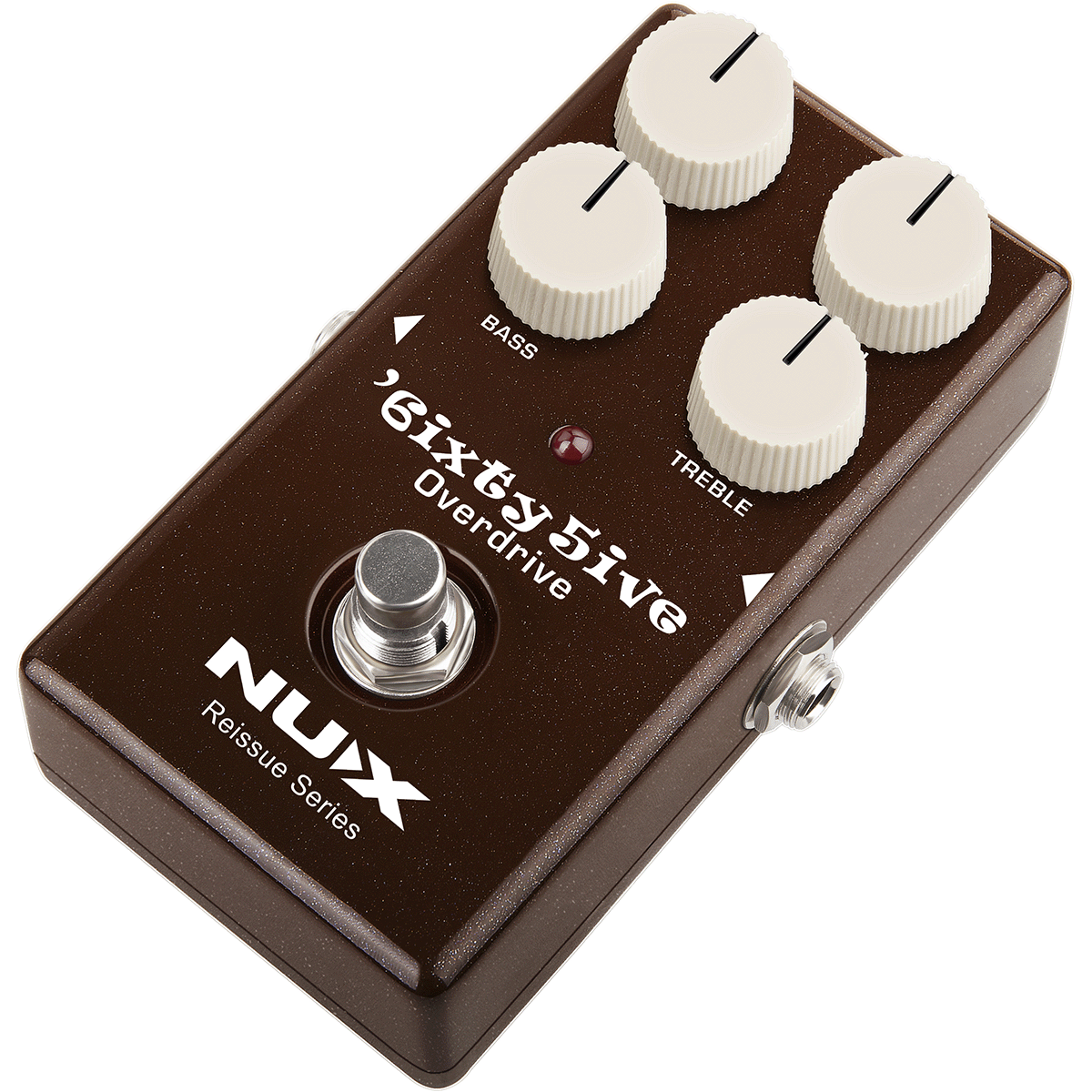

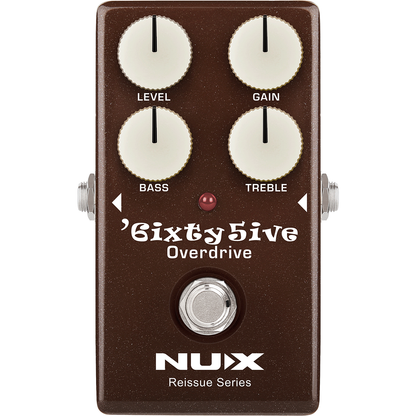

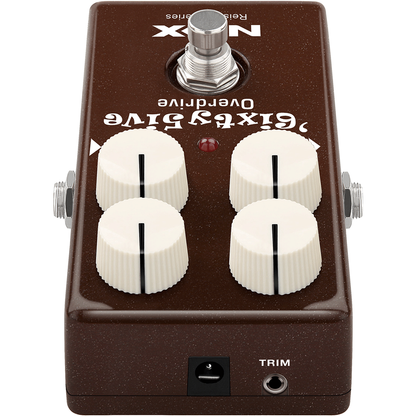

The Nux SixtyFive is a pedal that offers aggressive overdrive tones, based on the BlackPanel 65 tube amps. Its analog circuit, based on a JRC4558 gain stage, accurately recreates the saturated sound of Blues/Rock guitars. The pedal features four knobs for customization, including level and gain knobs, bass and treble dials, and a trimpot potentiometer for fine-tuning saturation. The pedal is true-bypass to conserve incoming signal and can be turned on or off with the footswitch.

 SixtyFive Overdrive Guitar Effects Pedal Features :

• Classic Fender Black Panel Overdrive Tone.
• Analog Circuit with JRC4558 Gain Stage.
• OP AMP Simulates the Characteristic Overdrive of Black Panel Tube Amplifiers.
• Saturation Trimmer.
• True-bypass Hardware Switching.

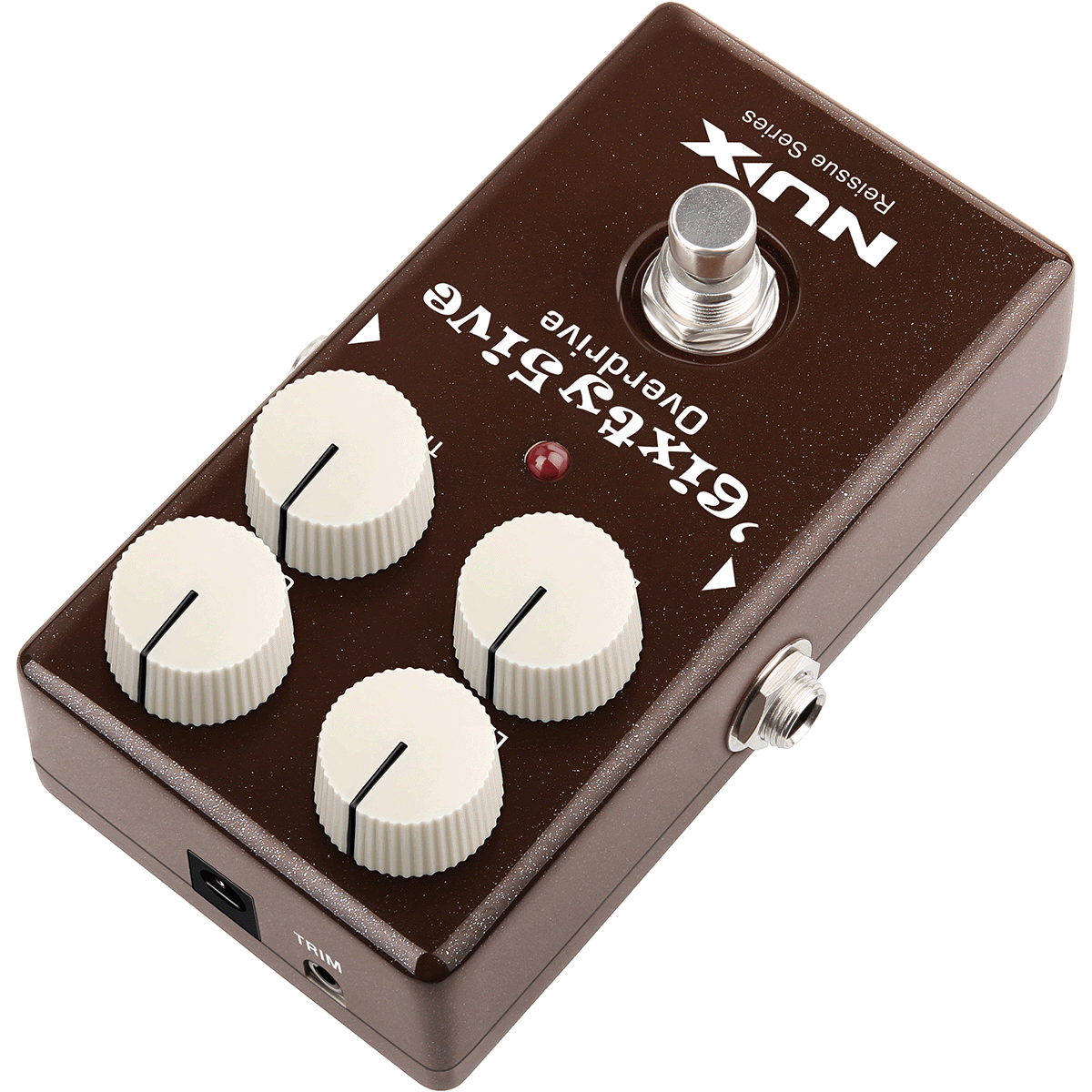

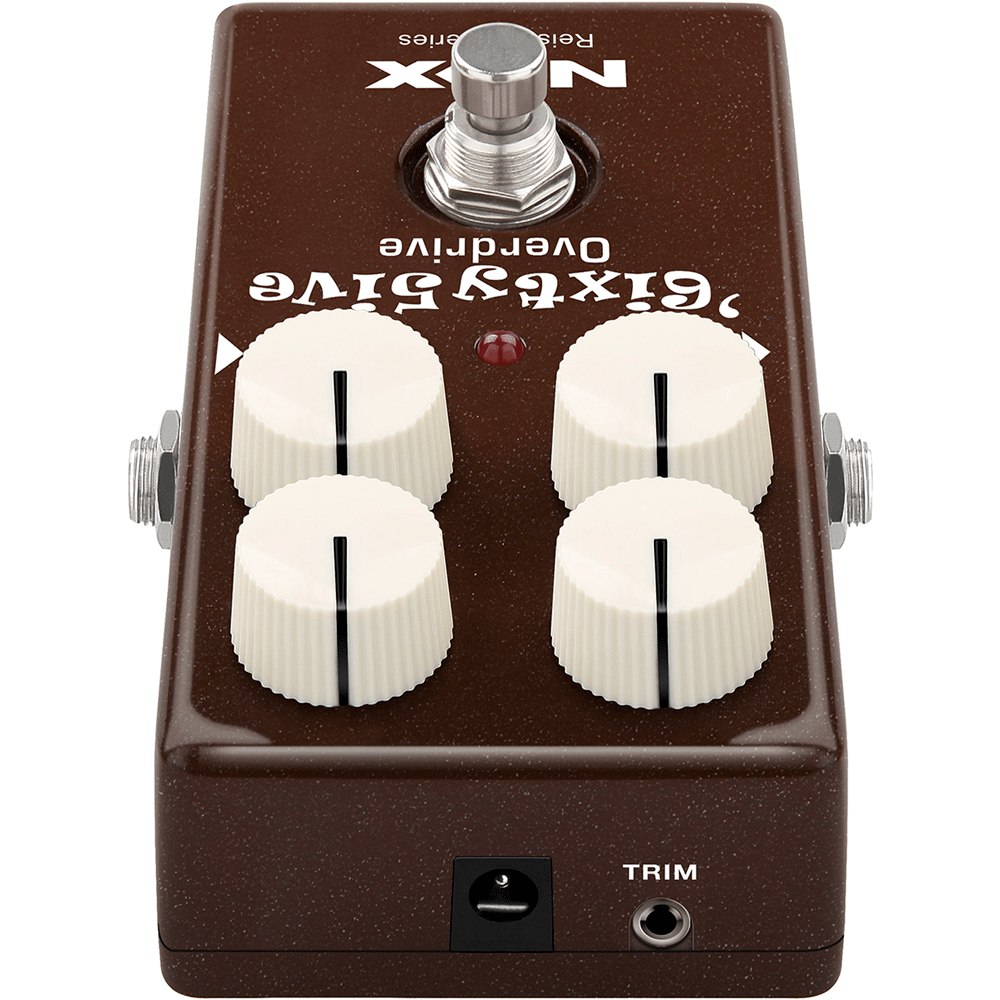

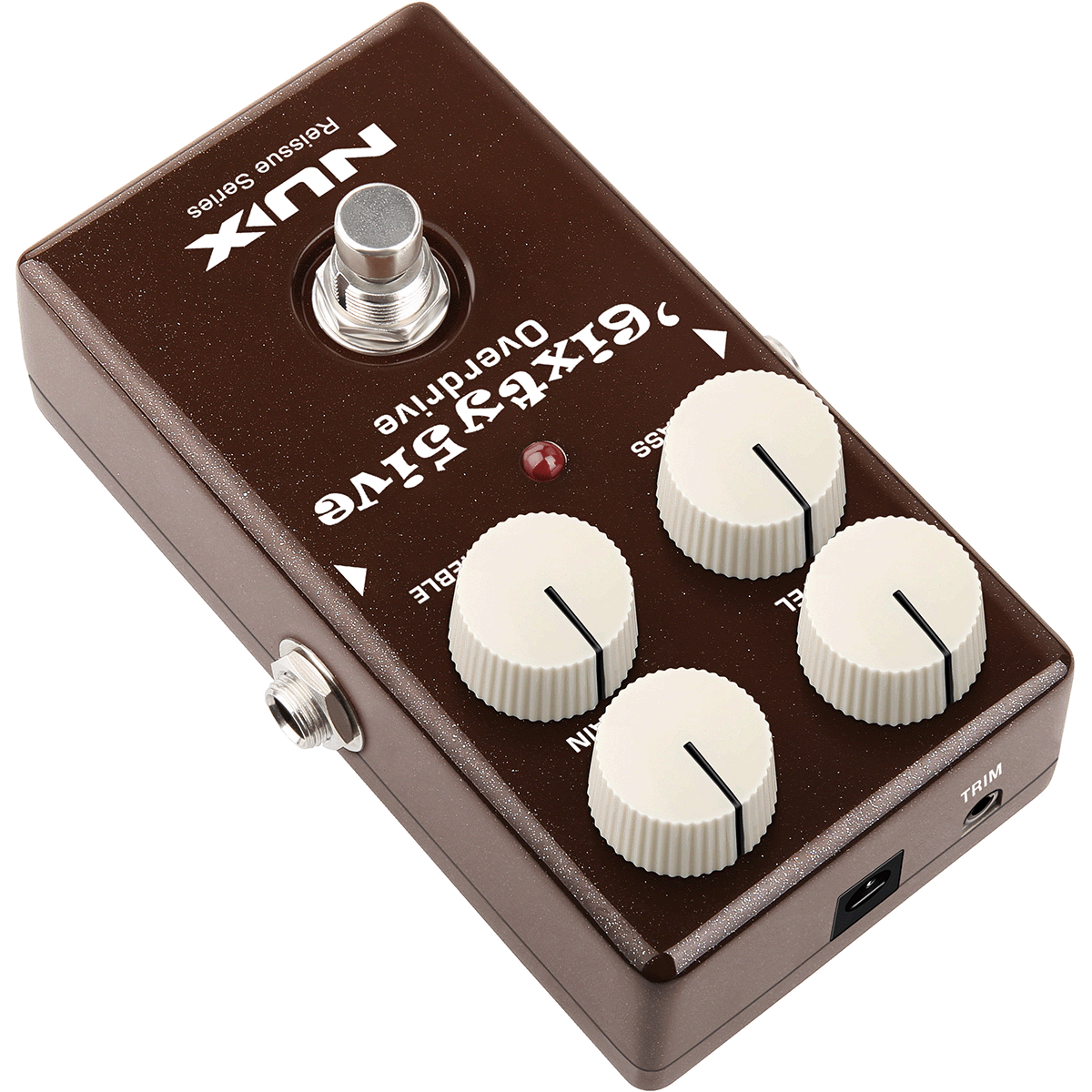

• Trimpot to adjust saturation

SixtyFive Overdrive Guitar Effects Pedal Specifications:

• Category : Overdrive
• Dimensions (mm) : 121 x 77 x 48
• Display : Led
• Format : Pedal
• Inputs : Instrument jack
• Number of effects : 1
• Outputs : Jack amp
• Power supply : 9V battery or external AC adaptor delivering 9V DC regulated minimum 300mA
• Power supply included : Battery only
• Input impedance: 1M Ohms
• Output impedance: 10K Ohms
• Current draw: < 10 mA
• Settings : level, treble, bass
• Switch : On/Off
• Technology : Analog
• True bypass : Yes
• Weight: 230g
